Fuel tank motorcycle fuel level sensor

FOB Reference Price:Get Latest Price
US $5.5-15.7 / Pieces | 100 Piece/Pieces Fuel tank motorcycle fuel level sensor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Misensor
Model Number:
ALS
Usage:
Magnetic Sensor
Theory:
reed sensor
Output:
Switching Transducer
Type:
fuel level sensor
Application:
Fuel tank,oil tank
Certificate:
CE RoHS ISO9001
Float Material:
black NBR float
Measuring range:
100-1000ma
Shipping:
DHL, UPS, TNT, EMS, BY SEA
Power supply:
10-33V DC
Resolution:
10-40mm
Function:
Fuel Level measurement
Signal:
Resistance output 0-1900HM
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week Fuel tank motorcycle fuel level sensor
Packaging & Delivery
Packaging Details
Generally exported packaging, 100 pcs fuel level sensor in one box.
Fuel tank motorcycle fuel level sensor
Port
Guangdong, China
Lead Time :
Shipped in 7 days after payment

Fuel tank motorcycle fuel level sensor

Fuel Level Sensor


                            Misensor tank motorcycle fuel level sensor



Misensor tank motorcycle fuel level sensor description

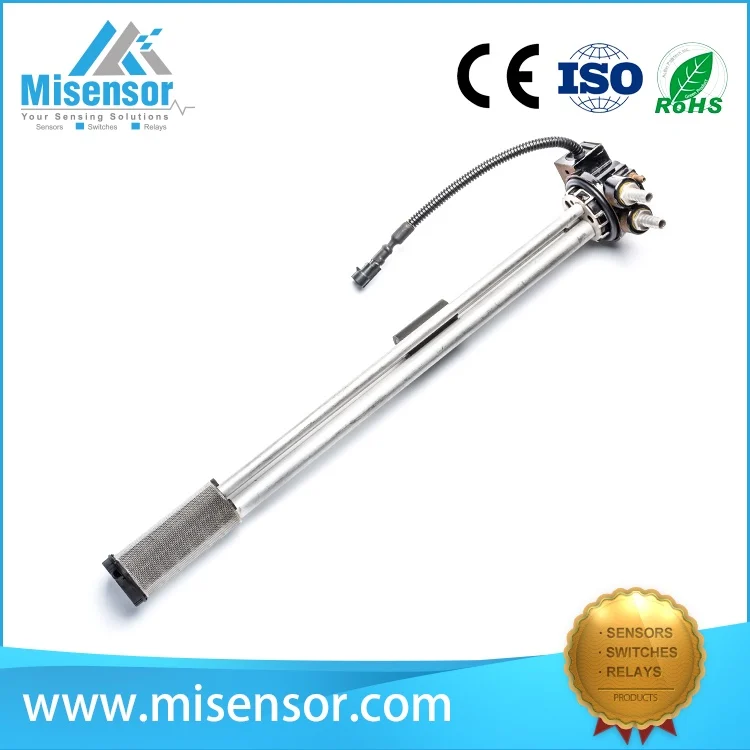

    The FLS series  is a fuel sensor with high quality,designed for heavy duty trucks,buses and off road vehicles. It could be easily adapted with customized sensor length,various fittings and output signal.The measurements are done by a series of reed switches positioned inside the level tube,a float with built in magnet moving up and down when fluid level changes,would trigger the reed switches inside the tube respectively,thus, generate a potential free resistance signal with a ohm value to indicate the change of fluid level. The switch contacts are hemetically sealed in the inert gas, and operated by a magnet,it is more reliable than the tradition resistive fuel level sensor.



FLS characteristicFLS functions

Material: Made in aluminum;

Machined bayonet fitting directly into head;

Intergrated connector,customized solution available upon request;

Fully customized output resistance;

Standard resolution 21mm;

IP67 Classified

Operational temperature: -40 to 85

Fuel level indication;

Optional low level alarm;

Ooptional temperature alarm;

optional filter;

Optional ventilation pipe with balancing valve.

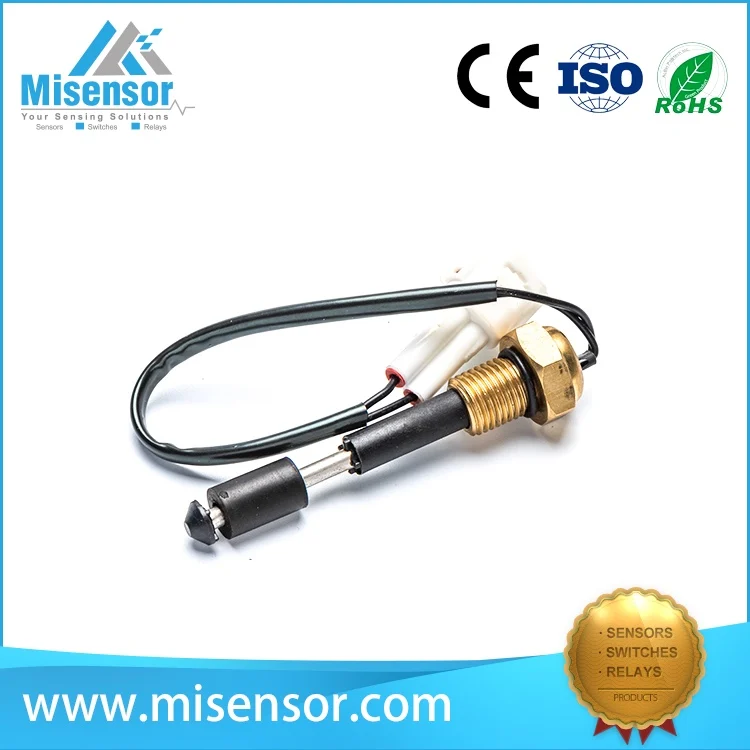

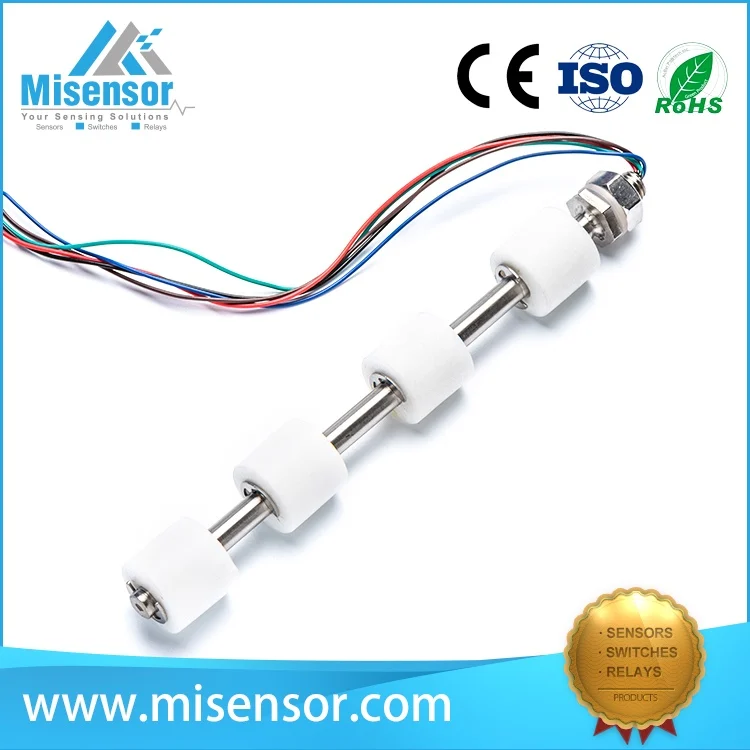

Misensor  tank motorcycle fuel level sensor show.

_0001__DSC1002.jpg_0003__DSC1000.jpg_0008__DSC0726.jpg_0009__DSC0722.jpg_0012__DSC0719.jpg_07.jpg_08.jpg_09.jpg_10.jpg_10.jpg





If you interested in the above, please do no hesitate to contact us !
