water tank level sensor for deep wells

FOB Reference Price:Get Latest Price
US $1.7-3.7 / Pieces | 100 Piece/Pieces water level sensor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Misensor
Model Number:
LS02
Usage:
Level Sensor
Theory:
reed sensor
Output:
Switching Transducer
Title:
water level sensor
Model:
LS02
Contact form:
1A , 1B
Max.contact rating:
10 W/50W
Max.switch current:
0.5 A
Max.switch voltage:
200/300 Vdc
Housing material:
PP and stainless steel
Application:
washing machine, coffe machine, dish washer
Installation:
Thread
Cable Length:
Customized
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Week water level sensor
Packaging & Delivery
Packaging Details
Generally exported packaging, 100 pcs (water level sensor) in one box.
water level sensor
Port
Guandong, CHINA
Lead Time :
Shipped in 7 days after payment

water tank level sensor for deep wells

Float level switch d

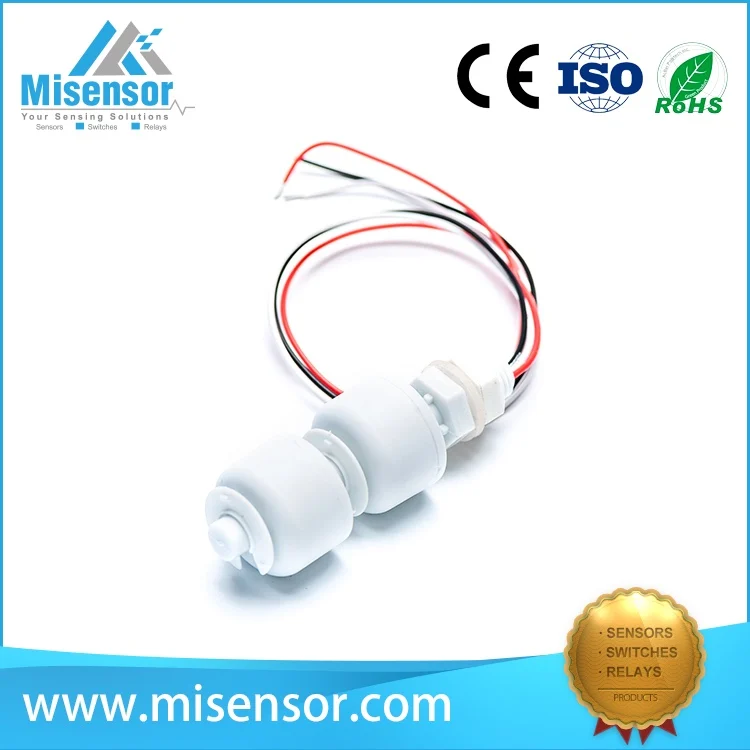

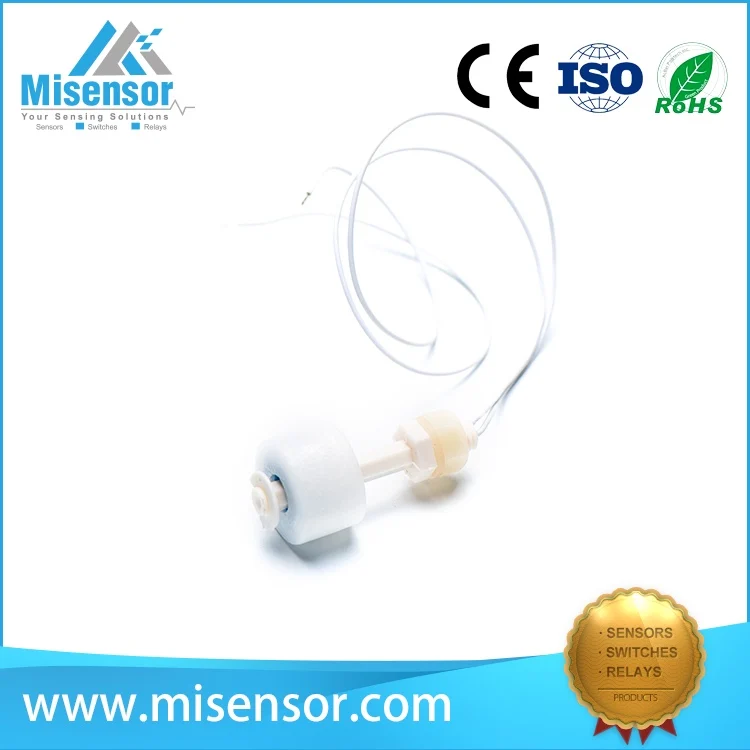

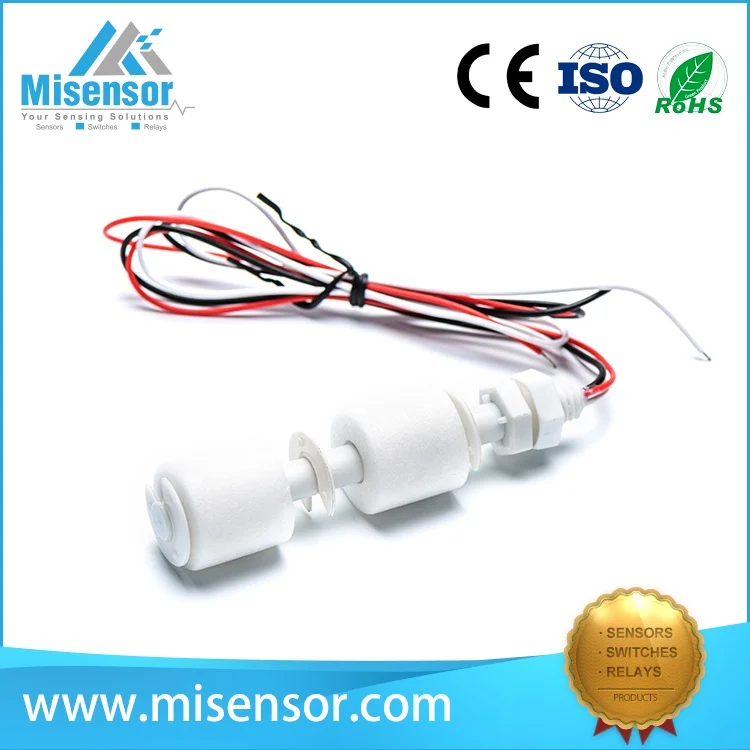

                        Misensor water tank level sensor for deep wells



Misensor water tank level sensor for deep wells description

     Integral to process control in many industries, level measurement sensors fall into two main types. Point level measurement sensors are used to mark a single discrete liquid heighta preset level condition. Generally, this type of sensor functions as a high alarm, signaling an overfill condition, or as a marker for a low alarm condition. Continuous level sensors are more sophisticated and can provide level monitoring of an entire system. They measure fluid level within a range, rather than at a one point, producing an analog output that directly correlates to the level in the vessel. To create a level management system, the output signal is linked to a process control loop and to a visual indicator.

     When the magnet comes close to the two contacts, they draw together and touch, allowing current to pass through. When the magnet is moved away, the contacts demagnetize and separate, breaking the circuit.

      In a float switch, the magnetic reed switch is hermetically sealed in a stem, most often made from plastic or stainless steel. The float encases a sealed magnet, which moves up and down the length of the stem as a fluid level rises and falls.





Misensor water tank level sensor for deep wells specifications



Advantages and applications of SUS fuel level sensor.

   a. No standy power requirement.

   b. Customer can define activated distance,cable lenght and connector.

   c.Hermetical sealed, suit to togh enviroment and long life.

   d. widly used in household appliances, automitive sensor, different types level sensors,control technology.

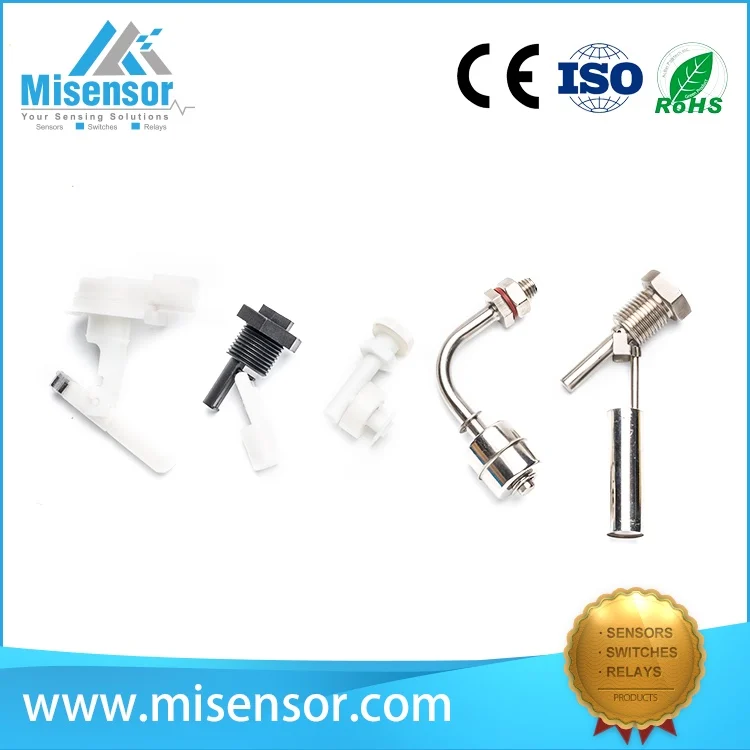

Misensor Tech SUS float level switches show:





Misensor Tech is a worldwide market leader in the design, development and manufacture a wide range of high-quality, high-reliability reed sensors base on reed switches. Reed sensors including magnetic proximity sensors, float level sensors,door window contact sensors, fuel level sensors, flow sensors,temperature sensors, pressure sensors and elevator contact switches. High technical competencies, our long time experience and the ability to innovatively implement our customers needs make us the ideal partner for the home appliances, automotive, medical and measure-and-control industry.
     Our value is "Reliability, Customer focus, Quality, Diligence, Discipline, Environmental awareness, honesty, creativity, openness".

      "Misensor, Your Sensing Solutions!" We are committed to solve your switching and sensing problems.













If you interested in the above, please do no hesitate to contact us !
